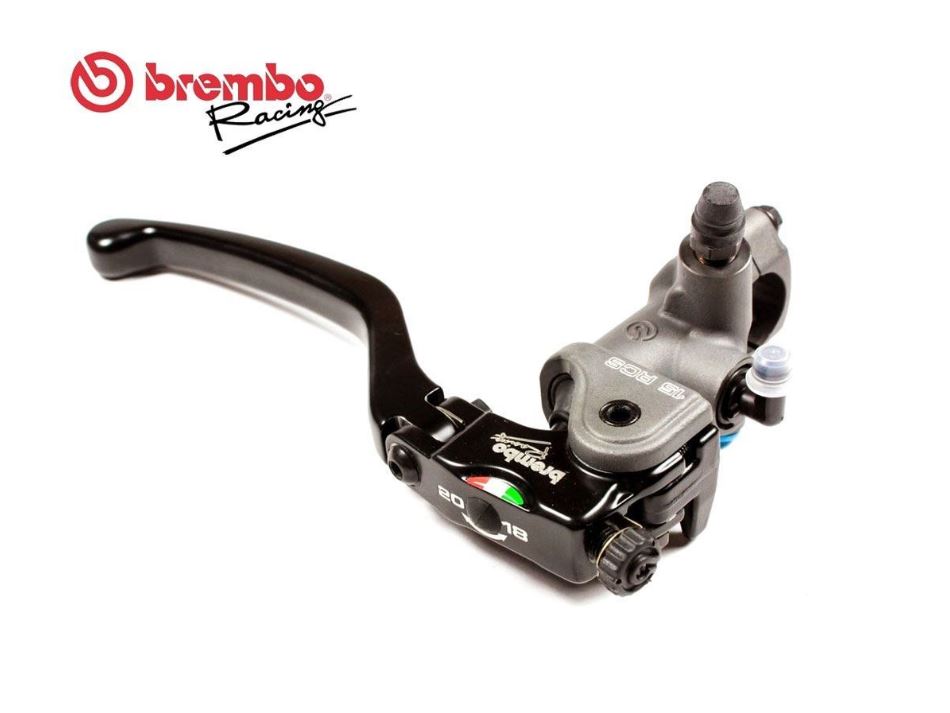

Brembo radial brake master cylinder RCS 15

Original price was: £299.99.Current price is: £206.99. Excluding tax

Radial Brake Master Cylinder Brembo 15 RCS
Fold-Up Lever, 18-20 ratio, switch stop

The Brembo 15RCS Master Cylinder is optimized for dual-caliper, four-piston braking systems. Featuring a 15mm piston, the 15RCS master cylinder is suitable for smaller bikes with single disk brakes.

Whatsapp us to ask a question !
SKU: 110A26330 Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , ,

Description

Brembo master cylinders improve response and control in all conditions. The result is an outstanding linearity between the force applied to the lever by the rider and the braking response, which translates to a unique, unrivaled feel.

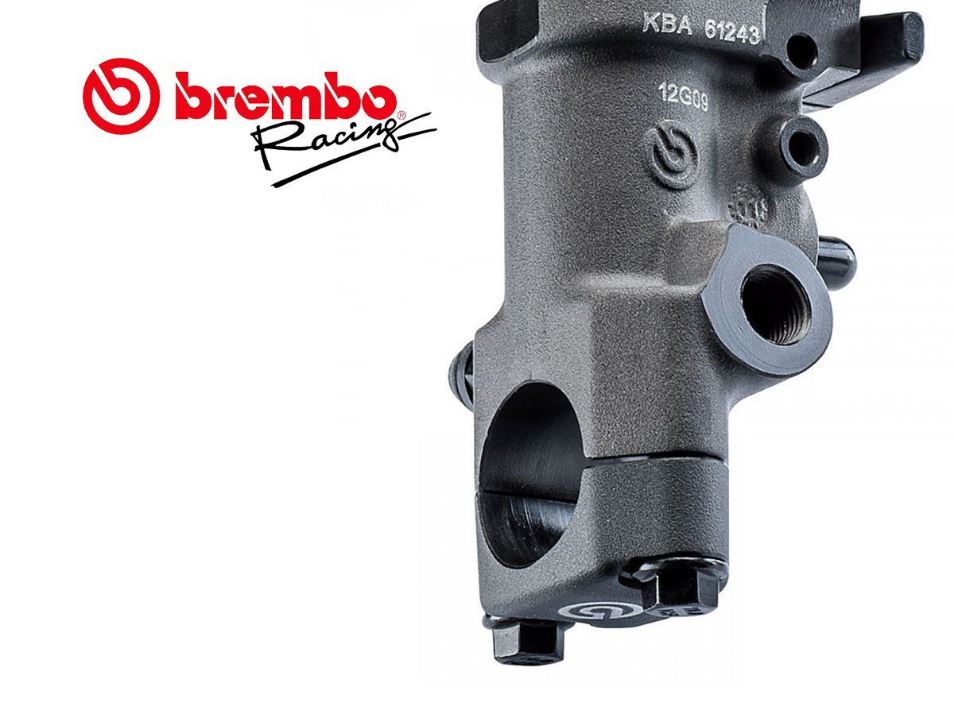

The master cylinder body is milled using CNC technology from cast aluminium alloy. A hard oxide coating is used for the surface finish.

Brembo radial master cylinders are available with 15 to 19 mm pistons with a pivot distance (for standard or folding levers) of 16, 18 or 20 mm.

This RCS 15 kit includes the hydrostop, pump compatible with ABS system

The 15RCS brake pump gathers all the technical innovations that have characterized the 19RCS, which itself follows in its geometry, dimensions and functionality of them aster cylinders used in MotoGP.

The 15RCS is particularly suitable for use on a single-disc brake system.

Radial pump designed for road motorcycles that allows maximum readiness and perfectly adaptable braking in all conditions of use, with excellent linearity between the force applied to the lever and the braking response.

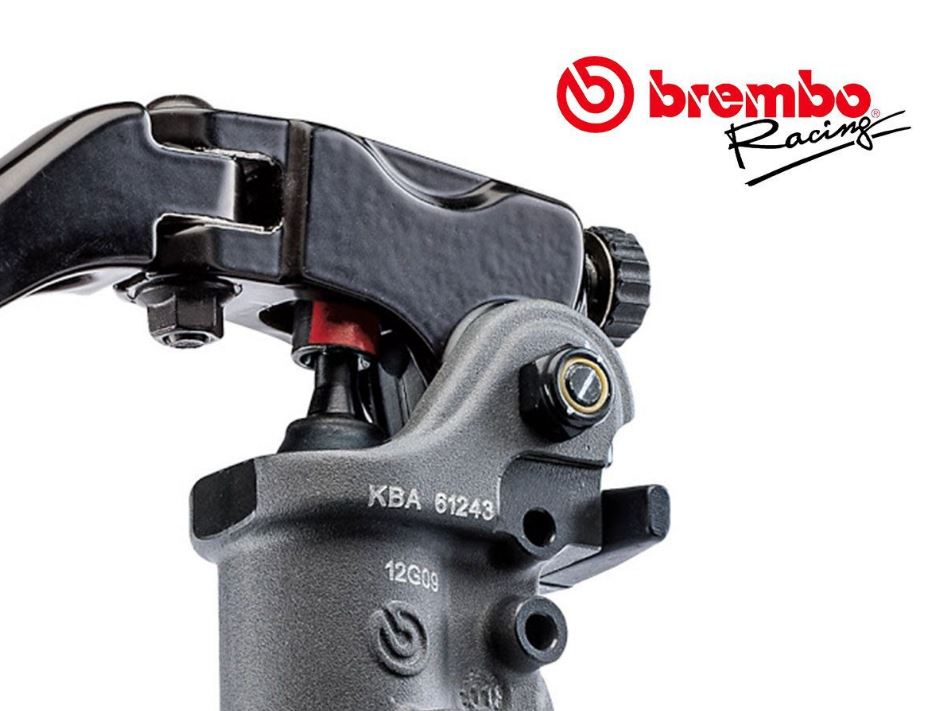

This pump has the RCS system, patented by Brembo for adjusting the lever distance, which allows to reach the ideal feeling between rider and motorcycle. In a few seconds, using a simple screwdriver, it is possible to make the braking system more ready (20 mm) or more modular (18 mm).

This model uses a piston with a diameter of 15 mm and aย standard leverย that can be folded down, a detail that is particularly appreciated by pilots in the Racing field and by those who love riding on the track.

Brembo uses only state-of-the-art procedures and processes to guarantee excellent operation and performance. The aluminum alloy pump body, in fact, is obtained by forging subsequently worked with numerical control machines.

The oxidation normally used in MotoGP and Superbike was chosen for the surface finish.

Technical features:

  • Piston diameter:ย 15mm
  • Lever distance:ย 18 / 20mm
  • Material:ย CNC forged aluminum
  • Protection:ย Hard anodizing
  • Weight:ย 350gr.
  • Brake Fluid:ย DOT 4

The RCS radial master cylinder is available in three different versions: 19, 17, and 15.

The numbers indicate the diameter of the piston and define the respective applications for the two versions: the 19RCS must be used in a dual disc system with 4-piston non-floating calipers, whereas the 15 RCS may be installed in single or dual disc systems with 4-piston floating calipers.



FOR MORE INFO PLEASE CONTACT US.

Additional information

Weight 1 kg
Dimensions 25 × 20 × 15 cm
