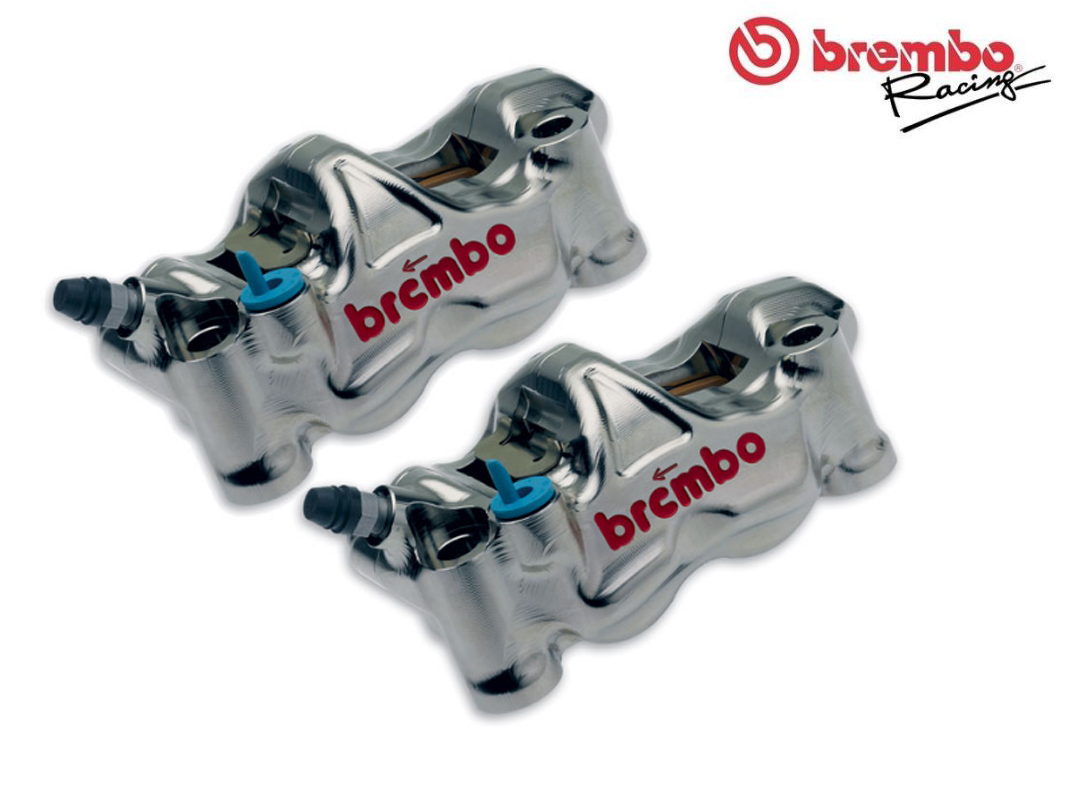

Brembo GP4-RX Monoblock Radial Brake Calipers CNC P4 32 100mm (pair)

£1,209.99 £1,099.00 Excluding tax

Brembo GP4-RX Monoblock calipers CNC P4 32 100mm

SKU: 220.B010.20 Categories: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Tags: , , , , , , , ,

Description

The body of the Brembo GP4-RX caliper is made entirely from billet and consists of two mechanically connected pieces.
Particular attention was dedicated to finding high braking power and stiffness values, obtained tanks to painstaking design, the use of carefully selected raw materials, and ultra-modern metal machining technology discoveries.

The hydraulic system has been painstakingly optimised, and the use of differentiated 32 mm diameter pistons has further increased the already renowned power and controllability of Brembo calipers.

GP4 RX calipers implement a surface finish borrowed from MotoGP.
The nickel plating, in addition to giving it a decidedly attractive look, allowed the already strict machining tolerances to be refined, all to the advantage of performance and operating precision.
The brake pads slide in specific guides, machined onto the body of the caliper itself, which allows brake pad pins to be eliminated.

The Brembo logo is embossed and hand-painted in classic Brembo Red.
The product, provided in a kit, includes sintered brake pads which represent the absolute best quality available on the market today.
The kit also contains an instruction manual, a set of Brembo stickers, and extremely useful heat adhesives used in racing to control caliper operating temperature, which is indicative of the product’s racing nature.

In the box:
2x Brembo GP4 RX 100mm spaced calipers ( Brembo part number: 220.B010.20 )
4x Genuine Brembo brake pads
2x Brembo temperature indicator sticker
2x banjo bolt
4x washers
2x Brembo sticker
1x Original Card

Technical Data:

  • Caliper Body: 2-piece
  • Fixing: Radial
  • Finishing: Nickle Finish
  • Material: Billet Aluminum
  • Bridges: 3
  • Hardware: Steel
  • Pistons: Aluminum
  • Weight (w/o pads): 1000gr
  • Pad Shape: C
  • Mounted Pads Included: Yes
  • Offset: 30mm
  • Brake Fluid: DOT4
  • Position – Front
  • Caliper Body – 2 Piece
  • Piston Size – 32mm
  • Number of Piston – 4
  • Disc Height – 32-34mm

***PLEASE NOTE – When using these calipers on ANY Ducati Panigale, OE Master Cylinders CANNOT be USED !!! WARNING

The OE Ducati Panigale Master Cylinder will blow out the seals, you MUST  use a 19RCS or 19×18 or 19×20 Master Cylinder !! With these calipers !!

Additional information

Weight 1 kg
Dimensions 30 × 30 × 20 cm
