Your Kawasaki ZX6 already has a standalone ECU and now you can get a cable and software to re-program it!
There is no longer any need to send us your ECU to remap, you can buy our DIY kit to fit to your own bike and remap and modify your own ECU!
You can also directly import Power Commander III .djm or Power Commander V 5 .pvm fuel maps!
You can de-restrict and Unleash Your bike’s ECU in 7 Easy Steps!
- Select your base map (3 base maps are currently included)
- Select your Ycc-T throttle map settings
- Select your desired fuel map bias
- Select your desired Engine Braking
- Import a fuel map file
- Choose your options (bypass EURO immobilizer, lower fan temps, speedohealer, rev limiter)
- Flash the ECU!
This Interface will remap & flash any ECU from the following bike models!

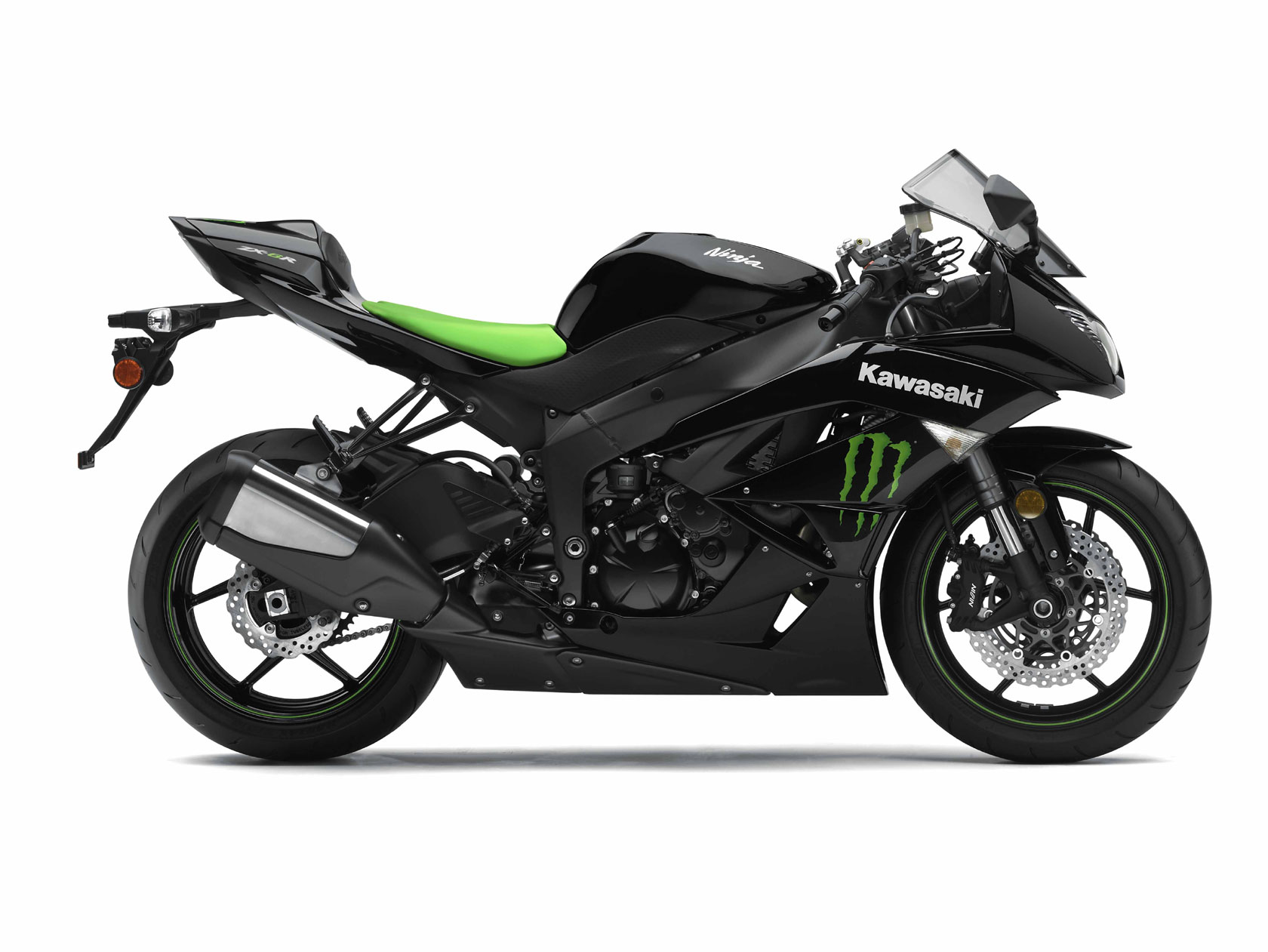

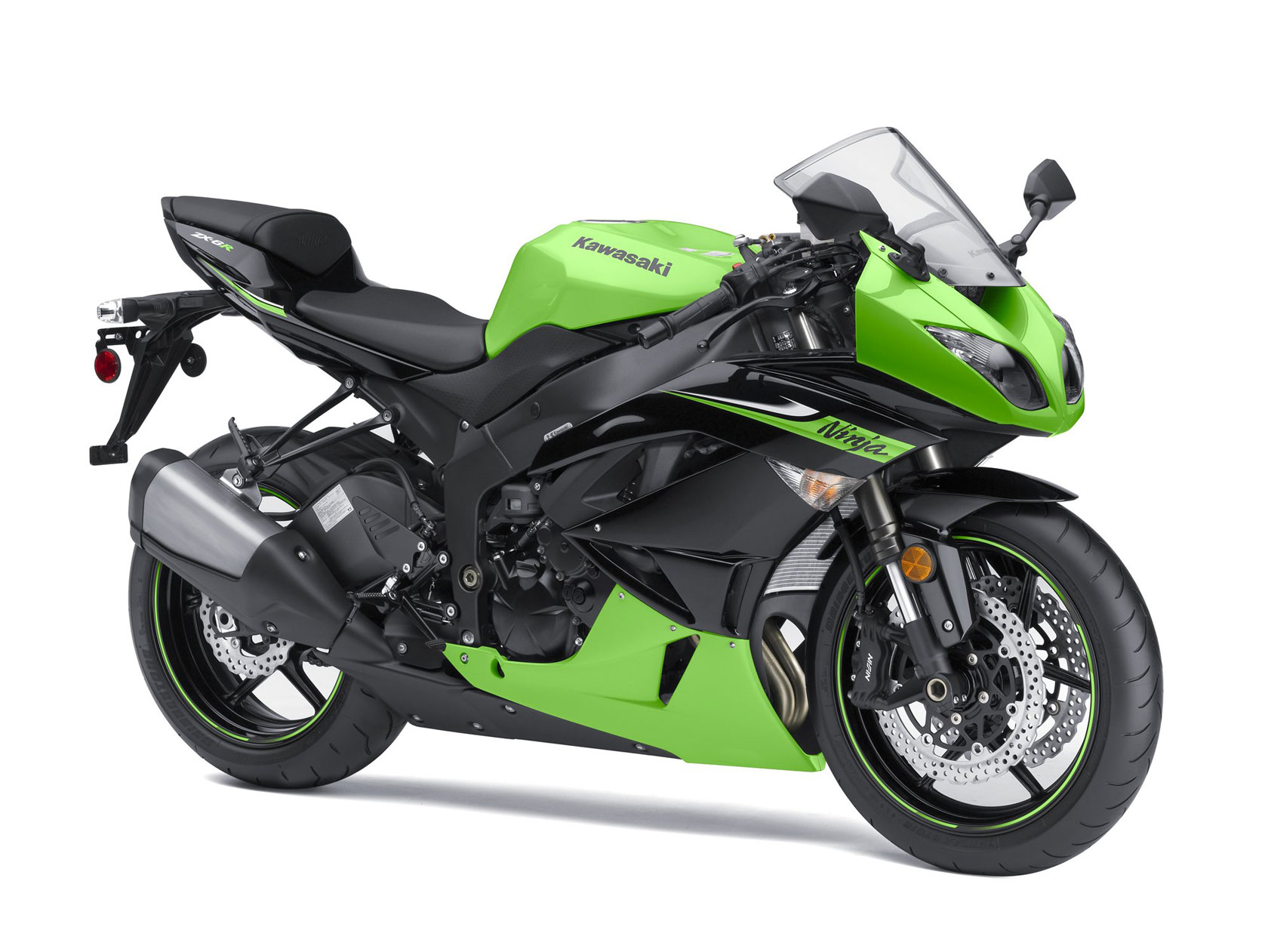

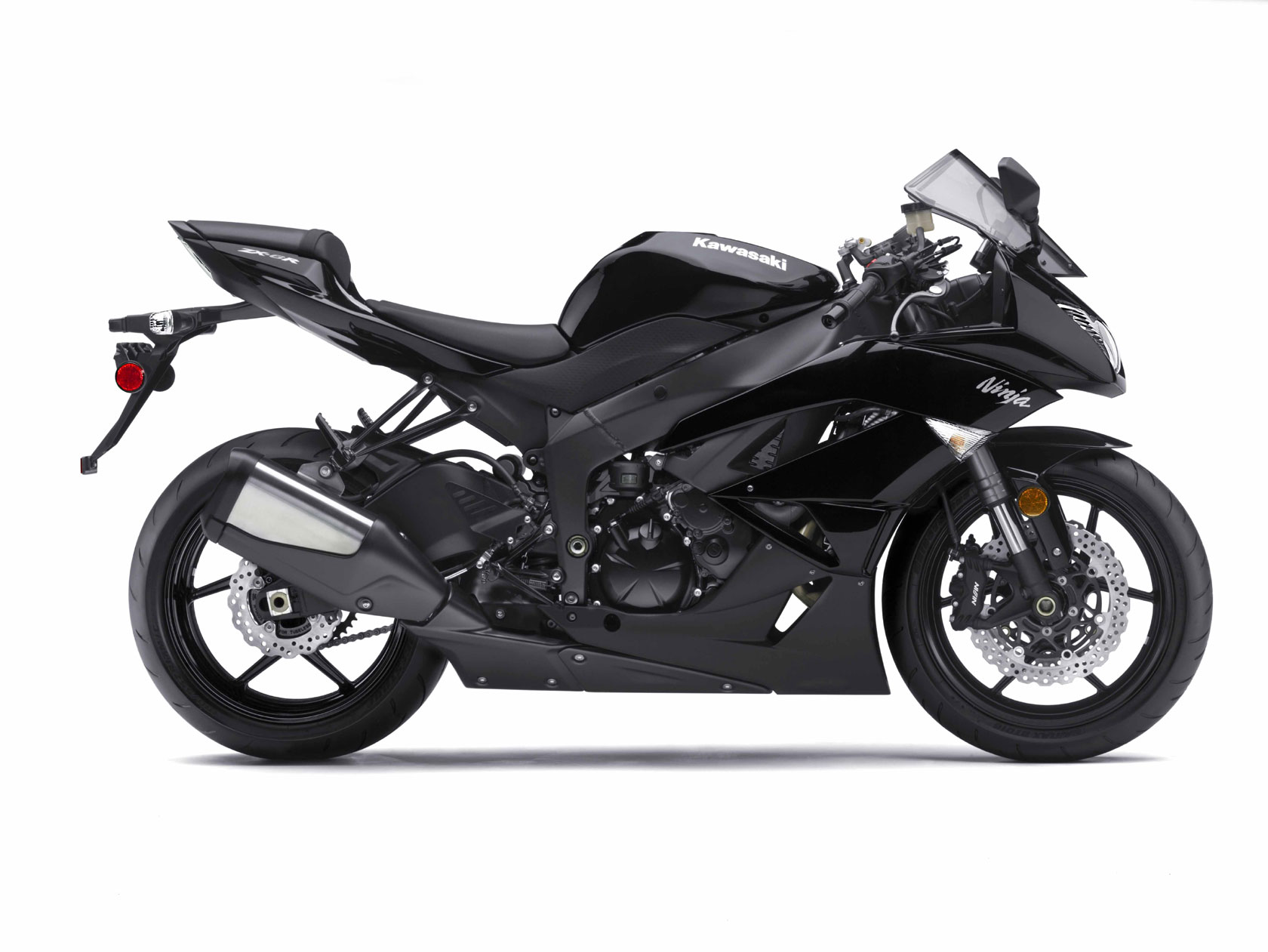

- 09-12 Kawasaki ZX6 (2009 2010 2011 2012)
- 05-06 Kawasaki ZX636 05-06 (2005 2006)
- 06-15 Kawasaki EX/ER 650 (2006 2007 2008 2009 2010 2011 2012 2013 2014 2015)
Warning! Please be aware that due to poor quality internal components used with the 2009-2012 ZX6R ECUs, it is possible that even normal use of this tuning kit may permanently damage the ECU.
Data-Link ECU Flashing Kit Includes:
-FTdataLink ECU Interface USB Cable
-Bike-side programming harness to permanently install on your bike
-FT ECU License to allow unlimited flashes for a single ecu
Note: Installation documents are found in the Document Center once logged in to customer account
Find your ECU Part Number below
hint: click items to explore currently defined parameters
09-12 ZX6 – 21175-0220(EU) StockECU
ECU Mapping
Rev Limiters
Disable Injector Decel Cut- Disable Code34/63 Exhaust Valve
- Disable Code64 – Air Switching Valve
- Disable Code31/62 – STP Valve
- Bypass IGN Resistor
- Bypass Tip-Over Sensor
- Bypass Gear Sensor
- Enable Quickshifter
Disable Injector Decel CutBench ECU Flashing Kit Includes:
- FTdataLink ECU Interface USB Cable
- Bench Flashing Harness to flash your ECU outside of the bike
- Power Supply for Bench flashing
- FT ECU License to allow unlimited flashes for a single ecu
Flash-Tune FTdataLink ECU Remap & flashing interface cables eliminate the need for the following plug in devices and gives you YEC race kit like performance and features.
– Power Commander or other piggy back fuel controllers
– Power Commander Secondary Fuel Module
– Power Commander Ignition Module
– Bazzaz ZFTi
– Two Brothers JuiceBox
– Leo Vince Fast II fuel and ignition box
ECU flashing is not only more cost effective than its alternatives but it is superior because but it also allows for more precise tuning fuel maps which automatically compensate for changing atmospheric conditions it allows for modification of parameters that are not otherwise tunable such a throttle valve actuation and engine brakingEveryone deserves the same tuning technology that until now was reserved for factory teams and riders with their YEC race kits. With Flash-Tune you can remove the restrictions that the factory must put in place to meet strict street vehicle emissions regulations for homologation, without the need for the factory race loom and factory YEC ECU.
By using Flash-Tune to remap your ECU you are able to remap and tune your bike without interfering with critical correction factors resulting in smoother power gains than ever before possible.
Flash-Tune Remap Products are under constant development. This product is for RACE USE ONLY and may invalidate your warranty.
The included software will automatically update when connected to the internet as new features are added!
With FlashTune from FTecu there is no need for third party fueling devices like Bazzaz or PowerCommander when ECU tuning your ZX6R
