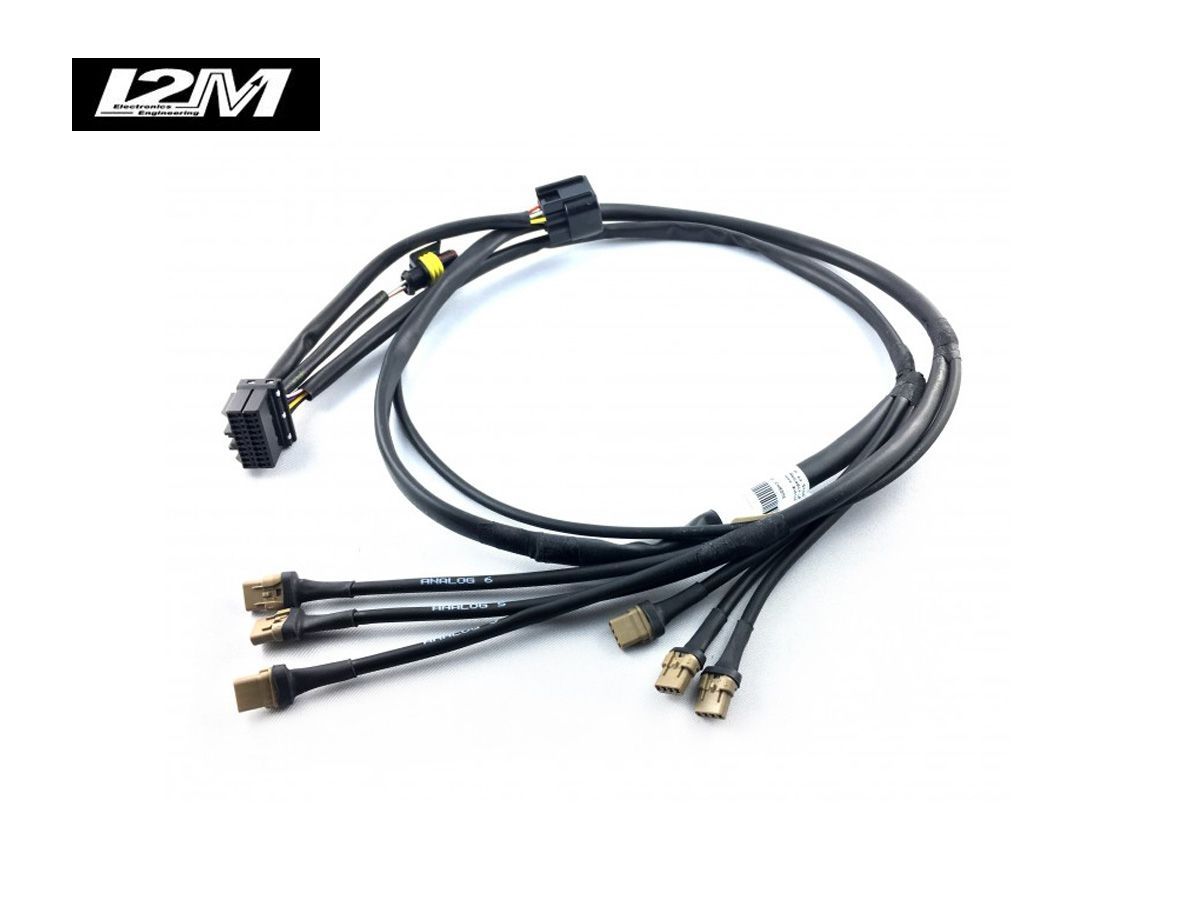

I2M POTENTIOMETER SENSOR WIRING FOR DASYX AND CHROME

This wiring connects to the data acquisition connector of the Chrome or DasyX and allows you to easily connect a speed sensor for the front wheel, the brake pressure sensor, two potentiometers and two rubber temperature sensors.

Each input can also be used for any other type of analog sensor.

ATTENTION : This wiring is not compatible with the dashboard Chrome PRO2
