Description
If you are looking for the LH mode switch like used on the WSBK race bikes, these are the ones. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH switch group entirely.

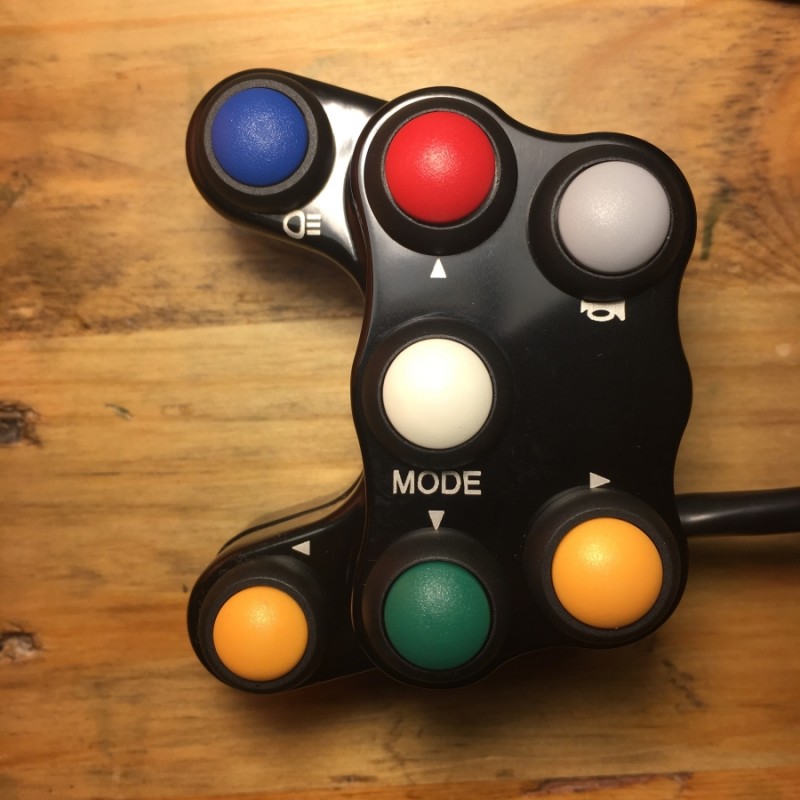

The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons are waterproof, navigation buttons and horn are momentary contact type and the left, right indicators and head light control are latching type. The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required.

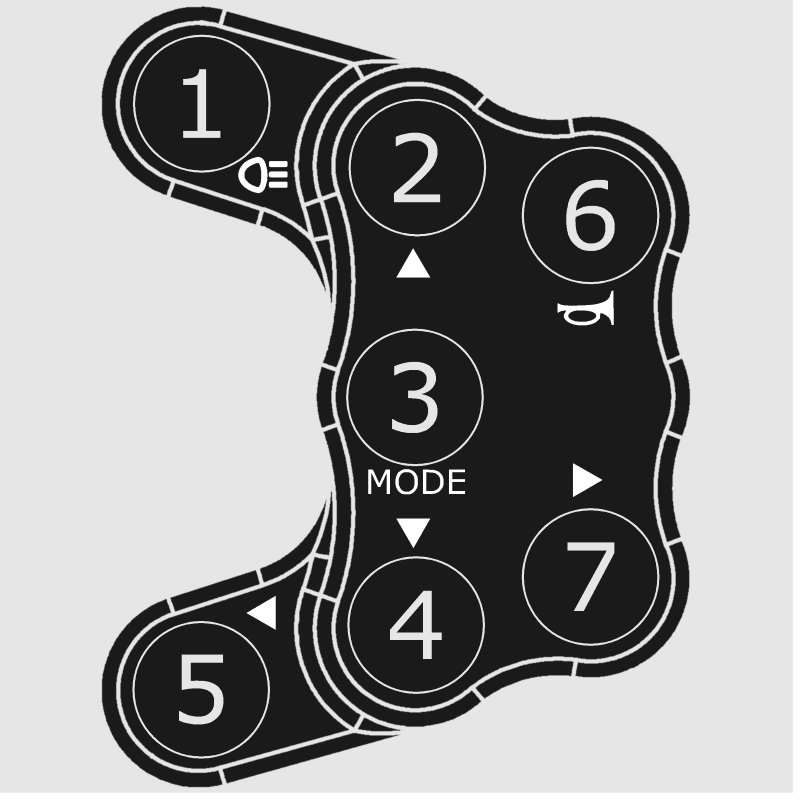

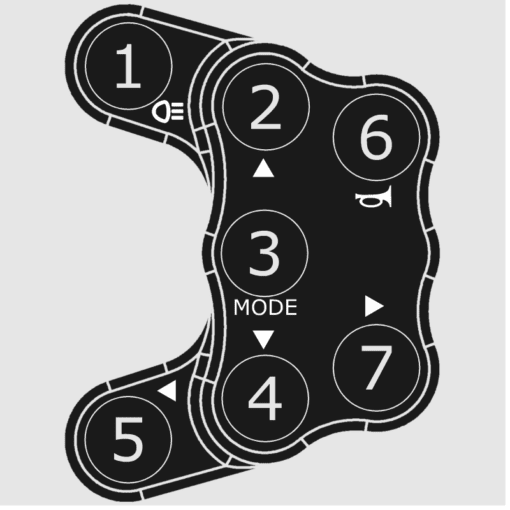

Button 1 – Blue headlight high beam
Button 2 – Red menu navigation up (like OEM controls)
Button 3 – White Mode (like OEM control)
Button 4 – Green menu navigation up (like OEM controls)
Button 5 – Yellow Left indicator
Button 6 – Grey Horn
Button 7 – Yellow Right indicator
Clutch and horn wiring switch wiring included in kit.
NOTE:This switch may not be road legal in your country , please refer to your countries road vehicle design rules prior to installation!!
