Breese Racing Controls Yamaha R1 & R1M FTecu Flash Tune ECU 5 Button Race Handlebar Switch Assembly, Plug and Play

£218.90 Excluding tax

Yamaha R1 & R1M FTecu FlashTune ECU
5 Button Race Handlebar Switch Assembly
Plug and Play
Whatsapp us to ask a question !

Description

If you are looking for the LH mode switch like used on the WSBK race bikes, these are the ones. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH switch group entirely.

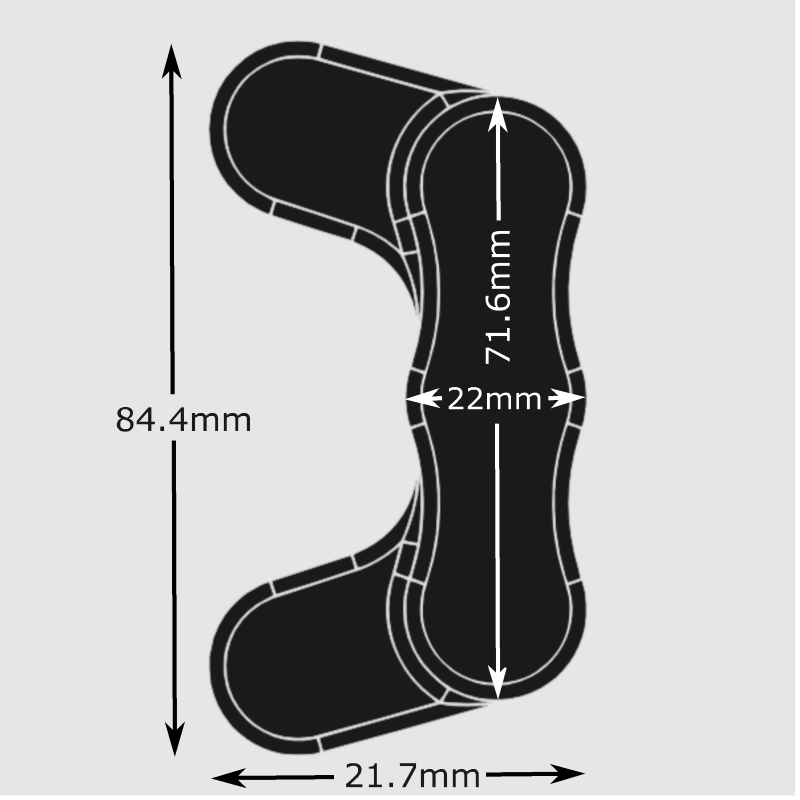

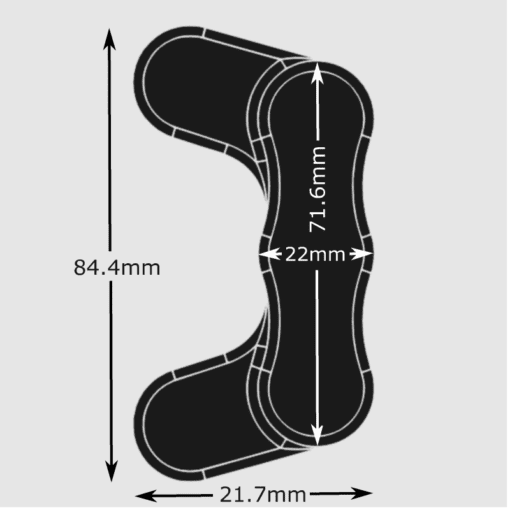

The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons are waterproof, navigation buttons are momentary contact type and the Pit limiter and Rain Light are latching type.

The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required.

Button 1 –Blueย is RAIN light (wire you own, plug supplied) (Latching Button)

Button 2 –ย Yellowย up navigation

Button 3 –ย Whiteย is MODE like standard controls

Button 4 –ย Greenย down navigation

Button 5 –Redย is PIT limiter (utilises side stand switch ECU input and requires Flash Tune ECU flashing)ย ย (Latching button)

Package includes a clutch switch loom.

This is a race only part, not for street!

YOU Require the FTecu Race Team Subscription OR FTecu Race Team Package Pro to enable the Pit Lane Limiter
