Breese Racing Controls MV Agusta F3 5 Button Race Handlebar Switch Assembly With Key Bypass , Plug and Play

Description

If you are looking for the LH mode switch like used on the WSBK racers, you are in the right place. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH and RH switch groups entirely.

The switch body is made from 6061 Aluminum, anodized black, laser etched. The wiring is plug and play. You can remove your street Left and right switchgroup and replace it with this unit. No wire cutting or splicing is required.

This unit eliminates the key switch barrel, this allows the removal of the ignition barrel and utilizes the On/Off (Kill) (Located at button 2 on the 5 Button unit) switch button as the primary method of turning the bike on or off. This saves weight and the risk of forgetting your key at the track!

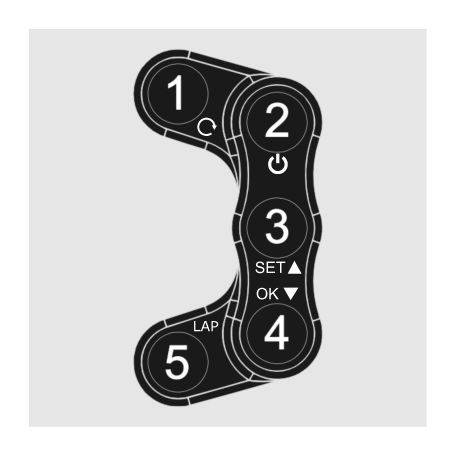

Button 1 – Yellow Start / MAP (Originally on RHS Switch Block)

Button 2 – Red Run / Stop (Originally on RHS Switch Block)

Button 3 – White SET / Up Navigation

Button 4 – Green OK / Down navigation

Button 4 – Blue LAP / Flasher

Note: Clutch switch wiring included in kit.

Note: This part is for race use only!!
