For ’10-’14 S1000rr (all variants)
If you are looking for the LH mode switch like used on the WSBK racers, you are in the right place. This is pure WSBK exotica.
This mode switch is for race only use and eliminates the stock LH switch group entirely.

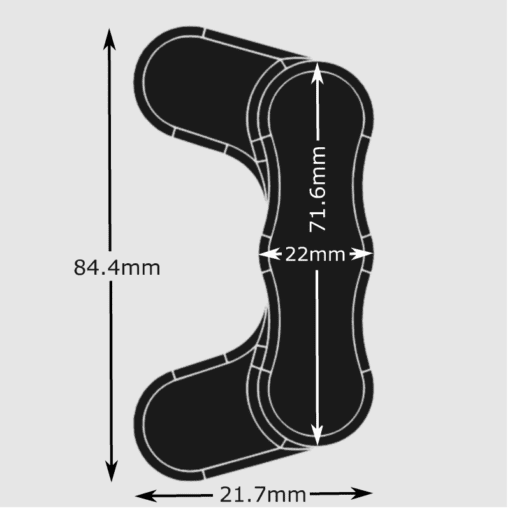

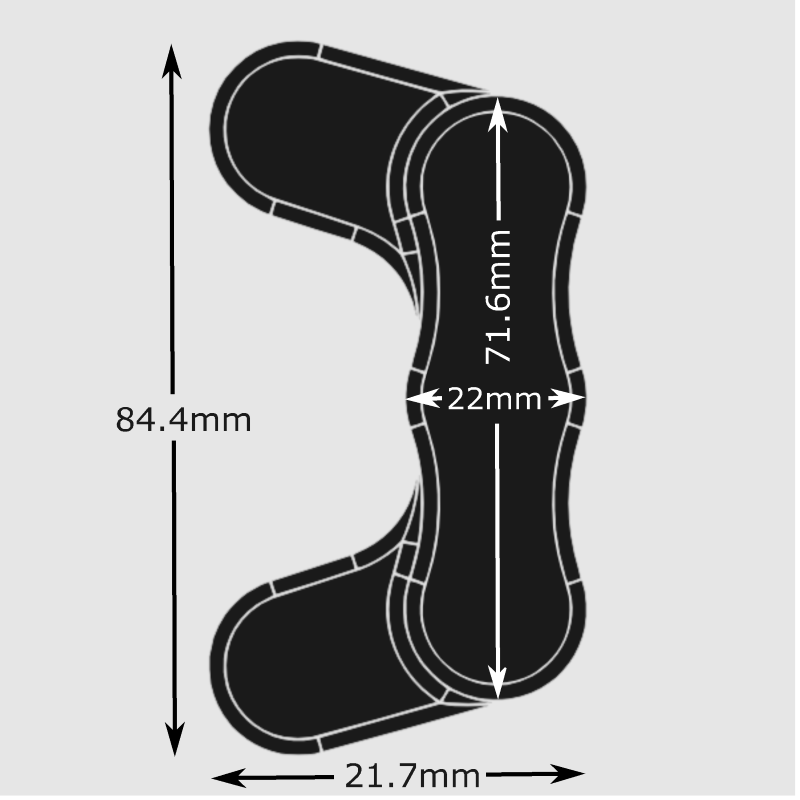

The switch body is made from 6061 Aluminium, anodised black, laser etched and the buttons are hard coated plastic of the momentary contact type.
NOTE: The wiring is not plug and play, However all that is required is to cut off existing OEM connector and wire the new. All internal wiring to switchblock is designed and tested to work as the OEM switchblock did. Just follow our wiring diagram to connect the 6 wires to the existing wiring. You can remove your street LH switchgroup and replace it with this unit. This unit relocates the MODE button from the RHS switch to the LHS

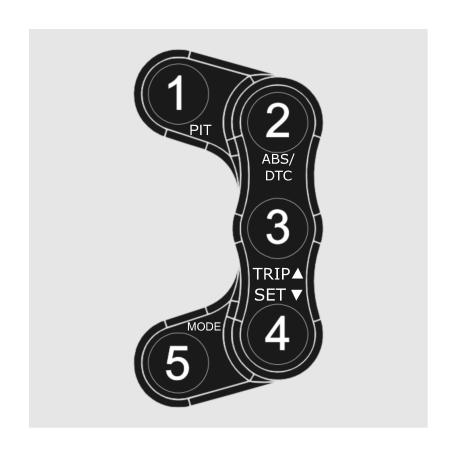

Button 1 – Yellow PIT (ECU flash required)
Button 2 – Red ABS/DTC
Button 3 – White TRIP (navigate up)
Button 4 – Blue is SET (Navigate down)
Button 5 – Green MODE (Originally on RHS switch block)
Replace your expensive OEM block now, to eliminate disappointment when you cannot adjust settings due to a faulty OEM switch.
This is a race only part, not for street!
