Description

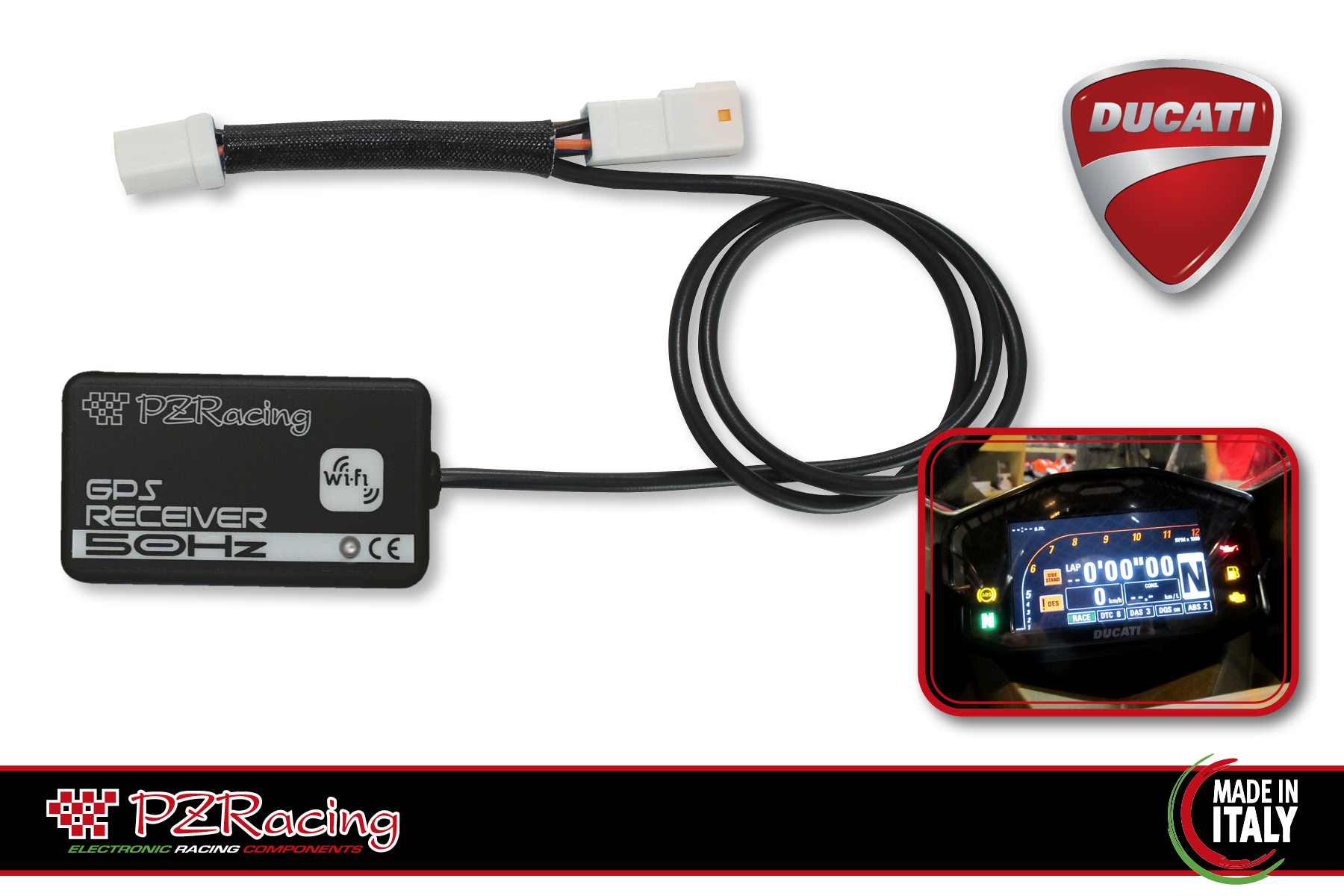

50Hz GPS receiver plug & play for Ducati Panigale <2018. The receiver uses the original dashboard as, time made will be displayed directly on your dashboard. The data is stored in the original instrumentation and can be easily retrieved on the display.
The most famous tracks of the world predefined, you will never push the button to record the coordinates of the finish line.
Intermediate times / ideal time, in addition to displaying the lap times on the dashboard in real time, at the end of the session you can download the stored data and view the intermediate times and the ideal time of the session on the software.
Wi-Fi data download, integrated on board Wi-Fi module that allows fast data download and a stable connection, about 20 seconds for a 20 minutes session.
Data acquisition, all the GPS data will be stored in the internal memory of the receiver (6 hours of recording), after which it will be possible to download and view them on the RacePro software.
Trajectories
GPS speed
Times / Split Times
Ideal time
Lean angle (calculated)
Lean angle: thanks to a specific algorithm you will be able to know the lean angle for each single curve of the circuit, without having to install any sensor or accessory on the bike.
P-Tronic can be used on the Ducati listed below:
- Ducati 899 Panigale 2013-2015
- Ducati 959 Panigale 2016-2019
- Ducati 1199 Panigale 2012-2014
- Ducati 1199 Panigale s tricolore 2012-2014
- Ducati 1199 Panigale R 2013-2017
- Ducati 1299 Panigale 2015-2018
- Ducati 1299 Panigale S 2015-2018
- Ducati 1299 Panigale s anniversario
- Ducati Supersport 2017-2020
- Ducati Supersport S 2017-2020
- Ducati Panigale V2 2020-2024
Compatible with
- Ducati 899 Panigale 2013-2015
- Ducati 959 Panigale 2016-2019
- Ducati 1199 Panigale 2012-2014
- Ducati 1199 Panigale s tricolore 2012-2014
- Ducati 1199 Panigale R 2013-2017
- Ducati 1299 Panigale 2015-2018
- Ducati 1299 Panigale S 2015-2018
- Ducati 1299 Panigale s anniversario
- Ducati Supersport 2017-2020
- Ducati Supersport S 2017-2020
- Ducati Panigale V2 2020-2024
Compatible with
Manual
https://www.pzracing.it/manuals/P-Tronic_PA700_en.pdf
Other Documentation
