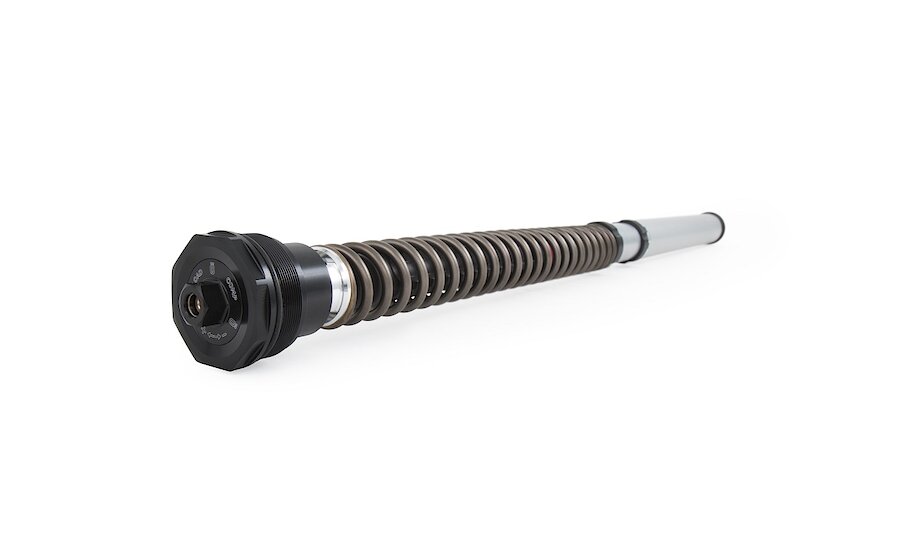

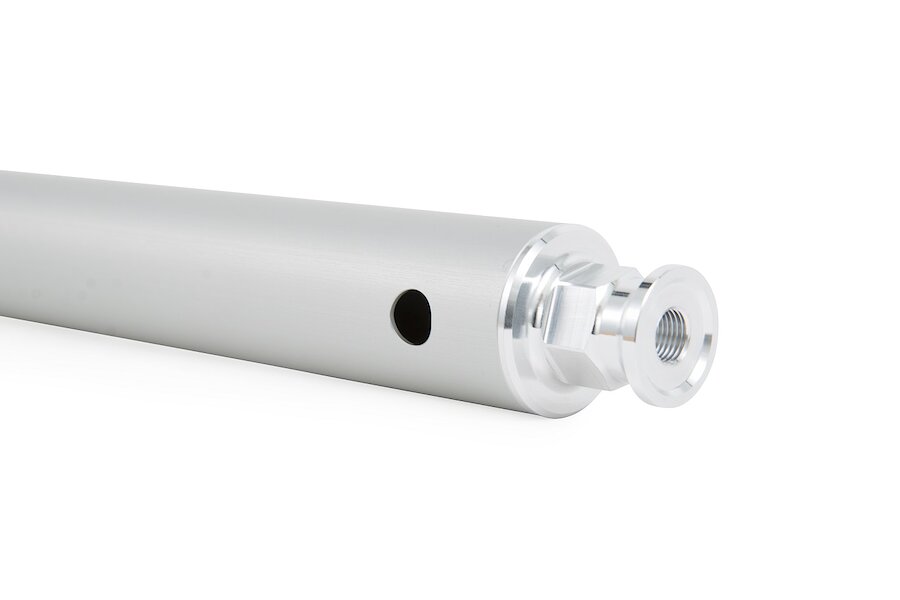

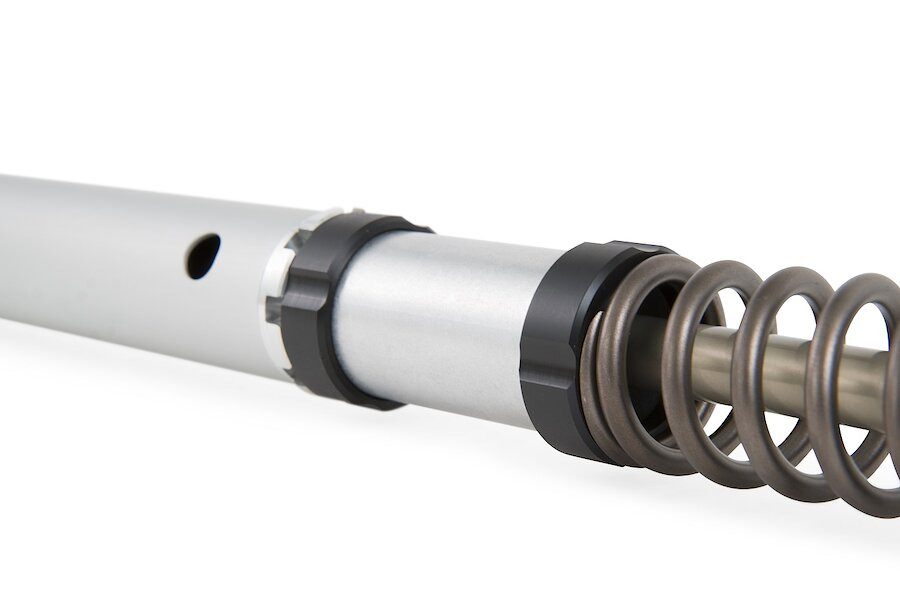

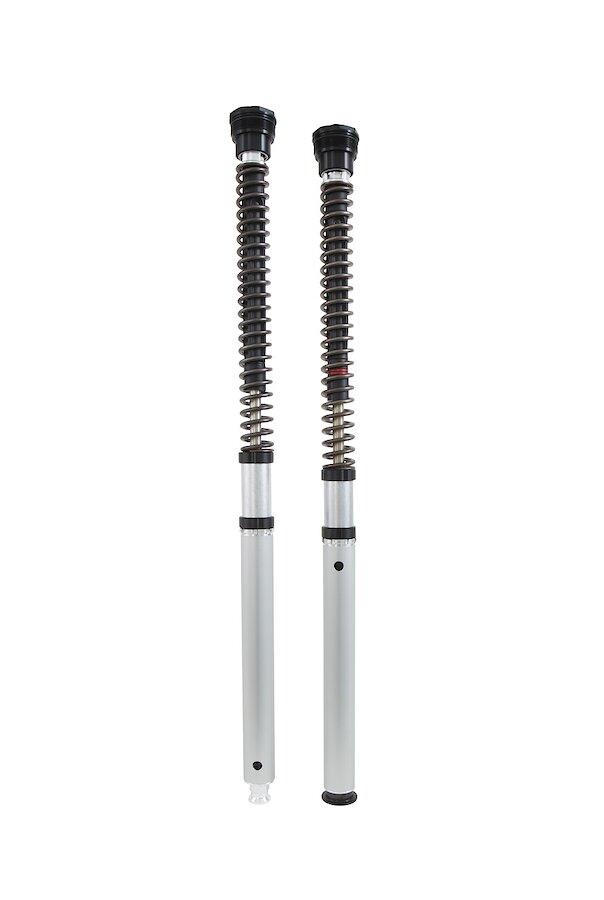

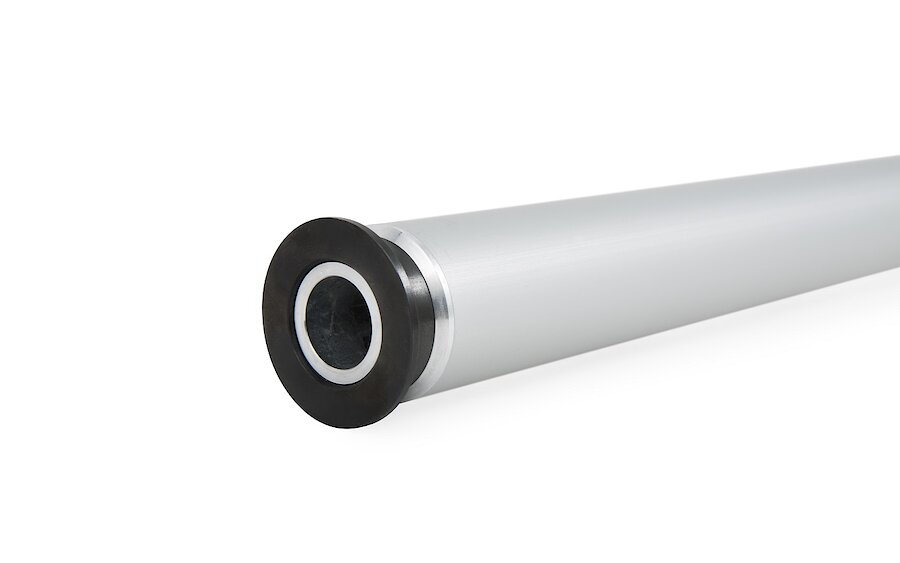

Öhlins NIX 30 Street Cartridge Kit FKS500

£695.77 Excluding tax

FKS500 Series NIX 30 Street Cartridges

This cartridge kit excludes springs, select here if you would like to add springs

Please enter your weight with full riding kit so we can match the spring to your weight.

Whatsapp us to ask a question !



The FKS500 NIX 30 Cartridge Kit is based on experience learned through decades of testing and racing in high-tier championships. The kit delivers loads of performance with stable damping characteristics while ensuring great comfort, contributing to rider confidence. The NIX 30 is developed to increase performance for lightweight sport bikes and street bikes, the cartridge kit gives the bike stable damping characteristics while ensuring great comfort which contributes to rider confidence.

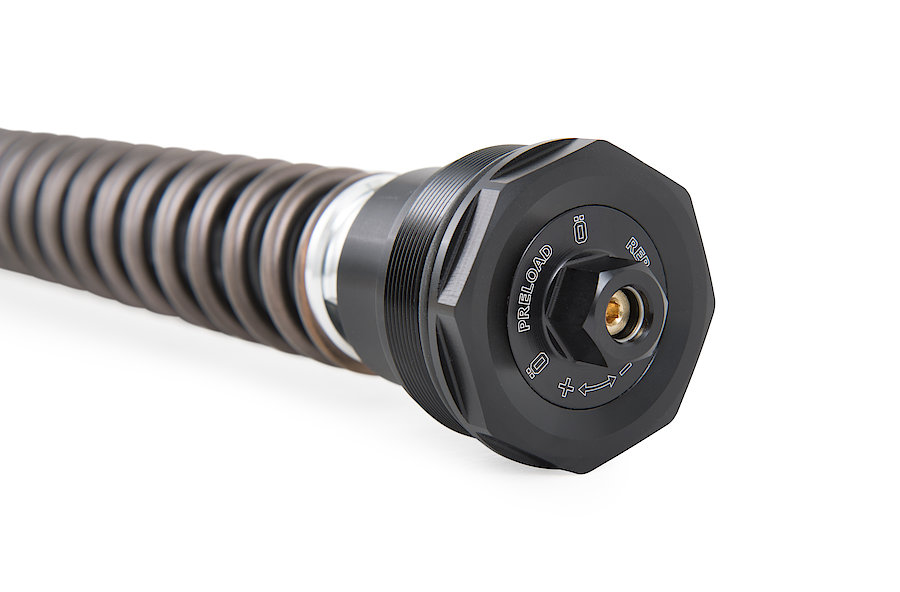

The Öhlins NIX 30 Street cartridge kit features new designed black top caps to give the bike a more subtle look. The “NIX” technology is developed from high level racing such as WSBK to deliver the utmost performance on road as well as on track. It fits bolt on in the standard fork legs and gives you adjustable compression and rebound damping separated in each leg, as well as preload adjustment, all accessible from the black top caps.

The Öhlins cartridge system fits into the original front fork, springs have to be ordered individually. Please follow our recommendations regarding spring rates and oil in relation to rider’s weight and preference listed in the specific cartridge kit’s mounting instruction.

The Kit has the Öhlins proven “NIX” design which features compression damping in the left leg and rebound damping in the right leg. This allows for a more precise function and stability. Adjustments are made at the top together with the spring preload and the cartridge system fits bolt-on and is easy to install in standard front forks.

The NIX 30 Street Cartridge Kit has been tested extensively and tailor-made to suit the individual requirements and characteristics of each individual bike.


Öhlins NIX Technology
External Compression & rebound adjustment
External preload adjustment
30 mm piston diameter
Range of springs available
Öhlins Setting library
Spring Series 08790-XX
Recommended Oil 01309
FKS 501 Ducati Scrambler 800 ’15-’19 (Kayaba) NIX30 Street Cartridge
FKS 502 Kawasaki Z900 ’17-’19 (Kayaba) NIX30 Street Cartridge
FKS 503 Yamaha TMAX 530 ’17-’19 (Kayaba) NIX30S
FKS 504 Yamaha MT-09/XSR900/Tracer 900/GT ’14-’19 NIX30 Street Cartridge
FKS 505 BMW R nineT ’17-’19 (Sachs) NIX30 Street Cartridge
FKS 506 Harley-Davidson XG750A Street Rod
FKS 507 KTM RC390 ’18-’19 (WP) NIX30 Street Cartridge
FKS 508 HD Softail Fat Bob ’18-’19 (Showa) NIX30 Street Cartridge
FKS 509 BMW R nineT ’14-’16 (Sachs) NIX30 Street Cartridge
FKS 510 HD Softail Sport Glide ’18-’19 (Showa) NIX30 Street Cartridge
FKS 511 Kawasaki Z900RS/Cafe/Perf.’18-’19 (Kayaba) NIX30S
FKS 512 Ducati Scrambler 1100 ’18- (Marzocchi) NIX30S Cartridge
FKS 513 KTM 790 Duke ’18- (WP) NIX30 Street Cartridge
FKS 514 Honda X-ADV ’16-’19 (Showa) NIX30 Street Cartridge
FKS 516 Honda CB650R CBR650R
FKS 517 Harley-Davidson FXDR 114
FKS 518 Yamaha MT-09 (Kayaba)
FKS 519 Yamaha MT-09 SP (Kayaba)
FKS 520 Triumph Thruxton RS (Showa)
FKS 522 Honda CB1000R (Showa) PPP
FKS 523 Ducati Monster Monster+ (Kayaba)
