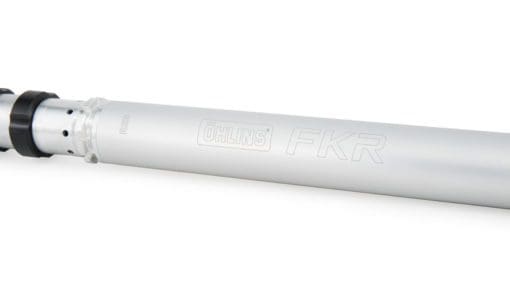

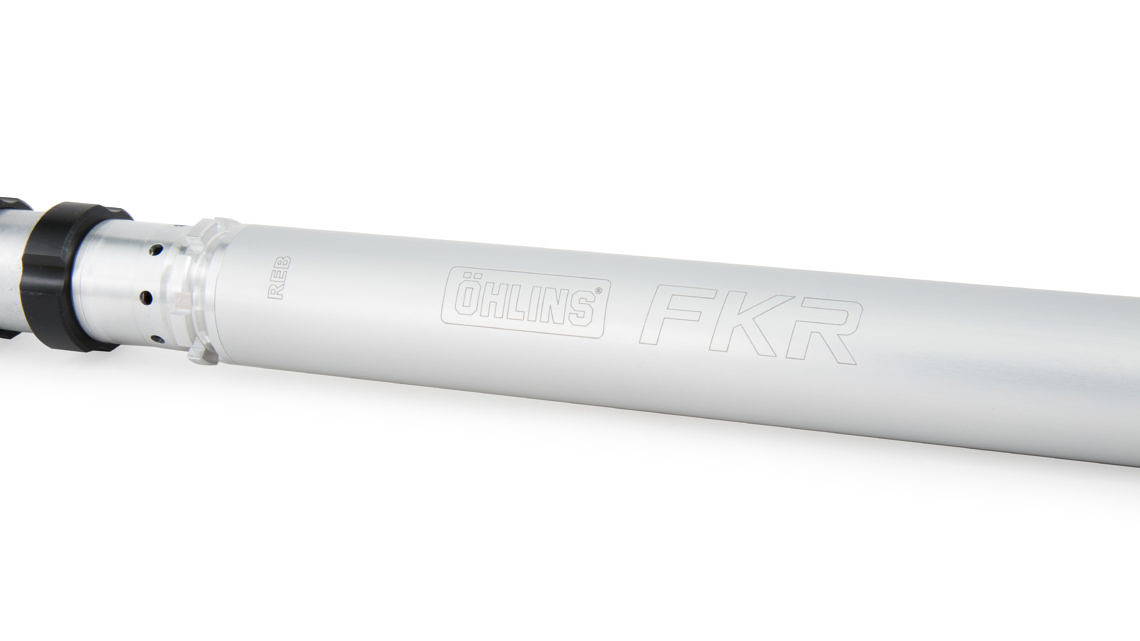

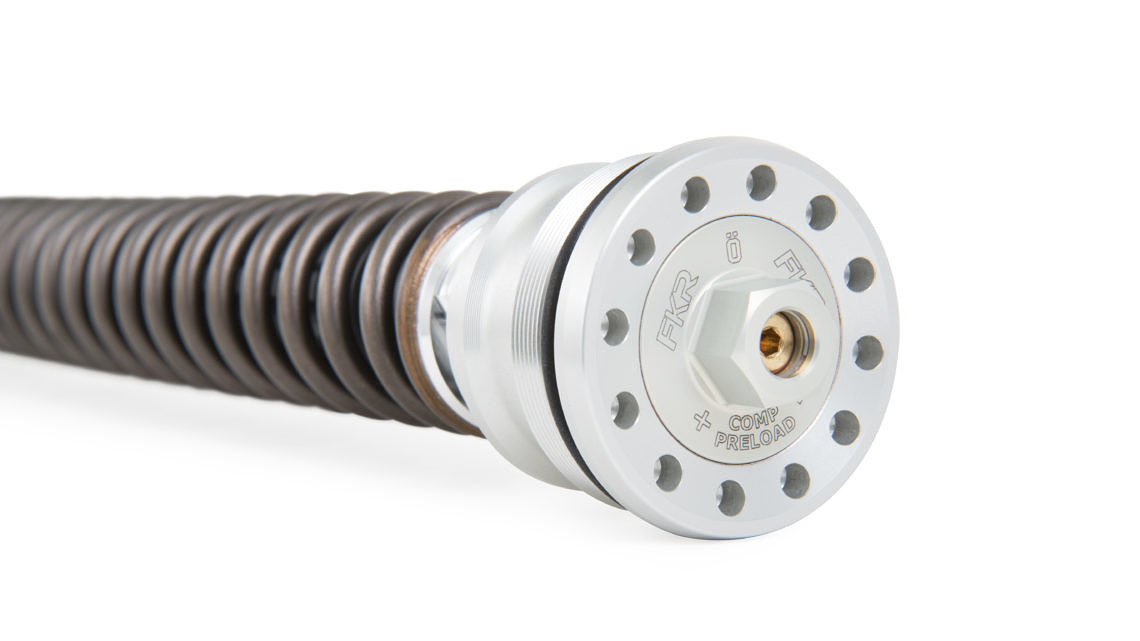

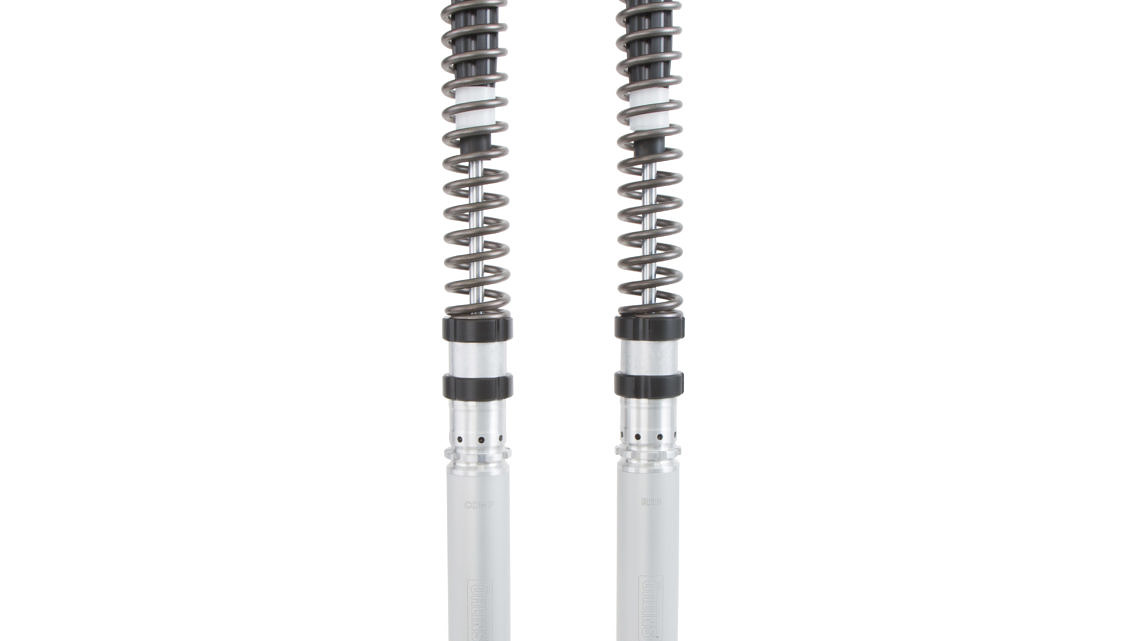

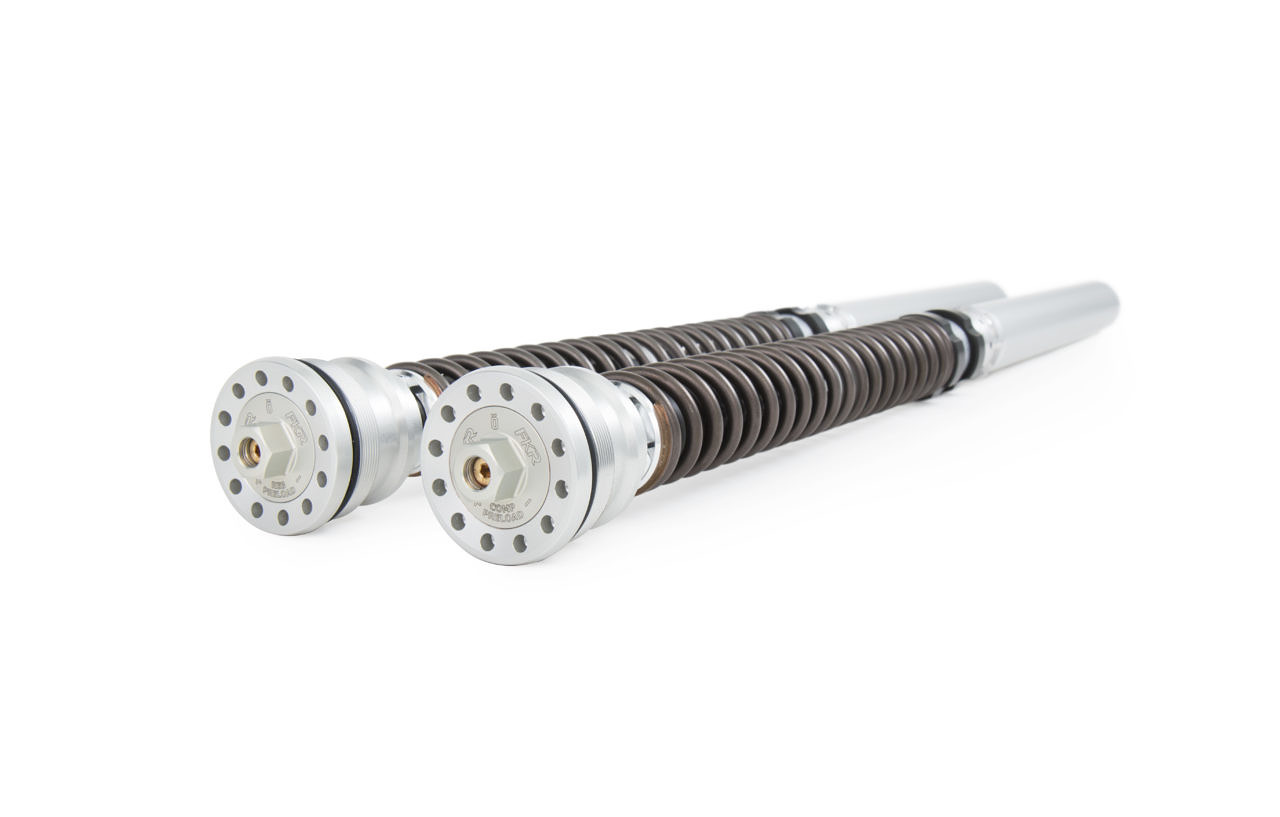

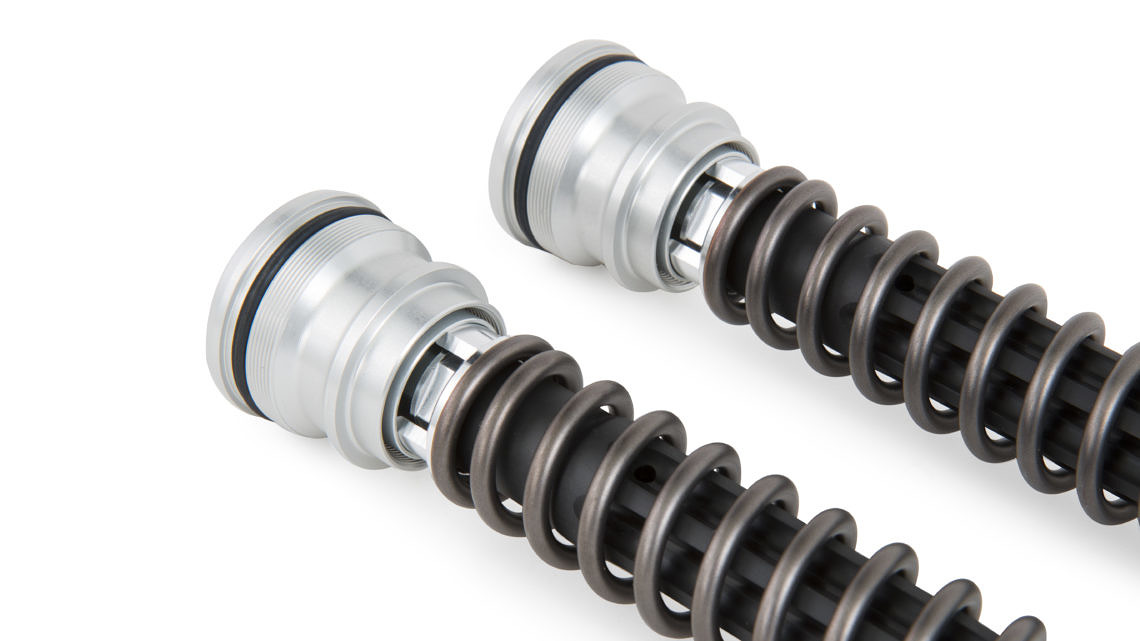

Ohlins FKR100 TTX25 Cartridge Kit

£1,595.70 Excluding tax

FKR 100

This cartridge kit includes 2 each of 9.5, 10, 10.5 springs, select here if you would like to add additional springs or know if you require different springs for your weight. If you are unsure just ask.

Please enter your weight with full riding kit so we can match the spring to your weight.

Whatsapp us to ask a question !



The new racing inspired FKR cartridge kit has technology derived straight from the Moto3, Moto 2 and World Superbike championships developed by our engineers at Öhlins HQ in Sweden. The new FKR is the cartridge kit to have for riders who demands the best performance from their bike. Designed for high-end top level racing in SuperStock and SuperSport classes, the new FKR cartridge kit will give you loads of performance. It comes as ready applications for the large displacement hyper sport bikes, such as the Yamaha R1/R6, BMW S1000RR / HP4, Honda CBR1000SP and Kawasaki ZX-10R.
The FKR Cartridge kit features a spring pressurized system, compared to the old gas pressurized system, the spring pressure offers a more simplistic and user friendly design. That also accounts for easier maintenance and setting changes. But there are more advantages of a spring pressurized system. There is no risk of gas leakage, it also gives a more consistent performance curve and allows for a more compact design. The Öhlins engineers decided to completely transform the FKR to its predecessor. With the Öhlins TTX technology, a new designed piston and an 8mm piston shaft we reduce the pressure build-up and create a faster damping response. That gives a “linear” style of damping characteristics which create more tuning options and also Increases grip & bump absorption properties while improving chassis stability. The Öhlins engineers also decided to make the FKR less sensitive to shim changes making it easier to fine tune the cartridge kit to your specific liking and for different tracks if you are racing.


TTX Technology
Fits most large displacement bikes
Easier maintenance
Spring pressurized system
8mm piston shaft
Technology from Moto 3 Moto 2 and World Superbike
Compact design
Complete setting library
Delivered with three different spring rates
Scope of delivery
  • Ohlins TTX25 cartridge kit
  • 2 x Fork springs 9.5 N/mm 04744-XX Series
  • 2 x Fork springs 10.0 N/mm 04744-XX Series
  • 2 x Fork springs 10.5 N/mm 04744-XX Series

Spring rate selection is based on rider weight. You will find recommendations for this in the installation instructions

Fitment – Please specify the bike model during checkout

FKR 102 Yamaha YZF-R1 2015 2018, YZF-R6 2017 2018
FKR 103 Yamaha YZF-R1M 2015 2018
FKR 104 BMW S 1000 RR 2008 2018, HP4 2013 2014
FKR 105 Kawasaki ZX-10R Ninja 2016 2018, Suzuki GSX-R 1000 R 2017 2018
FKR 106 Yamaha YZF-R6 2016 2016
FKR 107 Kawasaki ZX-6R Ninja 2009 2018
FKR 107 Kawasaki ZX-6R Ninja 636 2013 2018
FKR 108 Ducati 1199 Panigale S 2012 2014, 1199 Panigale R 2012 2014, 1299 Panigale S 2015 2017, Panigale V4 S 2018 2018, Panigale V4 Speciale 2018 2018
FKR 109 Honda CBR1000RR SP 2014 2018
FKR 110 Honda CBR600RR 2013 2018
FKR 111 Kawasaki ZX-10R Ninja 2011 2015
FKR 112 Yamaha YZF-R6 2008 2015
FKR 113 Aprilia RSV4 Factory 2010 2016
FKR 114 Ducati 1199 Panigale R 2015 2017
FKR 115 Ducati 899 Panigale 2014 2015, 959 Panigale 2016 2018, Panigale V4 2018 2018
FKR 116 Honda CBR1000RR 2012 2016
FKR 117 MV Agusta F3 2014 2018
FKR 118 Suzuki GSX-R 1000 2012 2018
FKR 119 Suzuki GSX-R600 2011 2017, GSX-R750 2011 2017
FKR 120 Triumph Daytona 675 R 2013 2018
FKR 121 Aprilia RSV4 RF 2017 2018

Additional information

Weight 5 kg
Dimensions 150 × 30 × 30 cm
