Graves Motorsports Smog AIS Block off plates Yamaha R1 1998-2003

£21.00 Excluding tax

Graves Motorsports Yamaha R1 98-03 Block off Smog AIS plates and bung

Whatsapp us to ask a question !

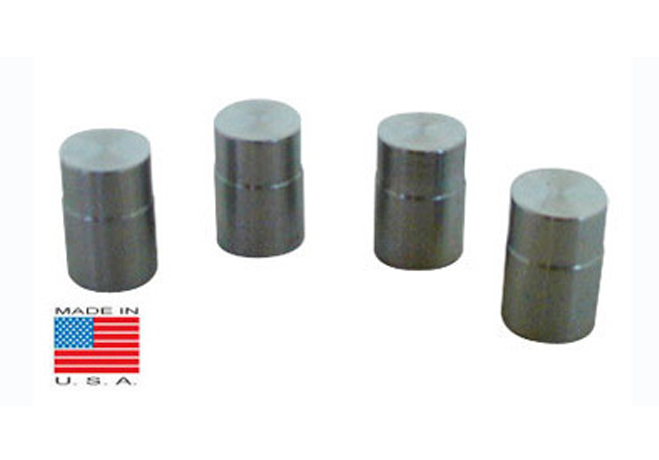

Graves Motorsports Yamaha R1 Smog Block Off Plugs for the 98-03 model year motorcycles.

Graves Motorsports Smog Block Off Plates are designed to seal off the ports on the cylinder head used by the air injection system (a.k.a smog pumps or AIS). Once these are capped off the air injection system can be safely removed. These Smog Block Off Plates are made from machined aluminum. There are two reasons why you want to remove the air injection system from your bike:

  • If you are using your motorcycle on a closed course (racing, track days, etc.) you will want to remove all unnecessary equipment from your bike for reduced weight and ease of maintenance.
  • To get an accurate Air:Fuel (A/F) ratio when dynoing the bike. The air injection system pumps fresh air directly into the exhaust stream in order to burn off any unused fuel. Unfortunately by doing this the A/F ratio is thrown off by the extra “fresh air” in the exhaust stream. By removing the air injection system you can achieve an accurate A/F ratio.
  • This addition will typically remove the majority of popping on deceleration that can be experienced with un-burnt gasses within the emission charcoal chamber. Note: Proper tuning may be needed and this is general feedback.
      Sold set of four


  • Yamaha R1 1998-2003

Additional information

Weight .50 kg
Dimensions 25 × 20 × 5 cm
