6P_FTDL_07 – FTecu FlashTune kit for Kawasaki ZX6R 05 06 07 08 ZX6363 05 06

Description

Your bike already has a standalone ECU and now you can get a cable and software to re-program it!

There is no longer any need to send us your ECU to remap (although you can here), you can buy our DIY kit to fit to your own bike and remap and modify your own ECU!

You can also directly import Power Commander III .djm or Power Commander V 5 .pvm fuel maps!

You can de-restrict and Unleash Your bike’s ECU in 7 Easy Steps!

•   Select your base map (3 base maps are currently included)
•   Select your Ycc-T throttle map settings
•   Select your desired fuel map bias
•   Select your desired Engine Braking
•   Import a fuel map file
•   Choose your options (bypass EURO immobilizer, lower fan temps, speedohealer, rev limiter)
•   Flash the ECU!

This Interface will remap & flash any ECU from the following bike models!

• 05-08 Kawasaki ZX6 (2005 2006 2007 2008)
• 05-06 Kawasaki ZX636 (2005 2006)
• EX / ER650

The Flash-Tune Remap Interface allows you to easily adjust the following!

•  05-06 ZX636 – 21175-0057(US) StockECU.ftm
•  05-06 ZX6 – 21175-0060(US) StockECU.ftm
•  05-06 ZX6 – 21175-0066(CAN) StockECU.ftm
•  07-08 ZX6 – 21175-0111(US) StockECU.ftm
  •  ECU Mapping
    •  Fuel
      •  TPS vs RPM
      •  MAP vs RPM
      •  INJ proportioning
      •  INJ Timing
      •  Ram-Air Comp
    •  Ignition
      •  Ignition Advance
    •  STP Valve
      •  STP on-throttle
      •  STP off-throttle
  •  ECU Settings
    •  Rev Limiters
    •  Fan Temps
    •  Enable ECU QS
    •  Disable Exhaust Valve

*Some features vary and are bike model specific

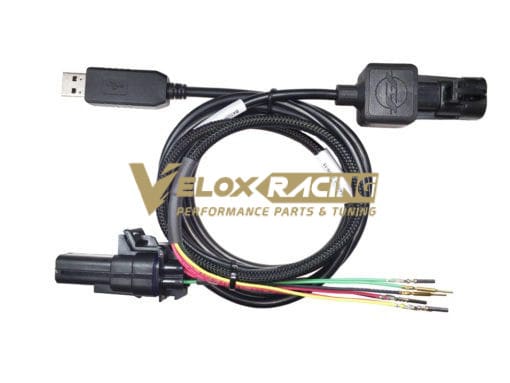

This Data-Link ECU Flashing Kit Includes:

• FTdataLink ECU Interface USB Cable
• Bike-side programming harness to permanently install on your bike
• FT ECU License to allow unlimited flashes for a single ecu

Flash-Tune FTdataLink ECU Remap & flashing interface cables eliminate the need for the following plug in devices and gives you YEC race kit like performance and features.

– Power Commander or other piggy back fuel controllers
– Power Commander Secondary Fuel Module
– Power Commander Ignition Module
– Bazzaz ZFTi
– Two Brothers JuiceBox
– Leo Vince Fast II fuel and ignition box

ECU flashing is not only more cost effective than its alternatives but it is superior because but it also allows for more precise tuning fuel maps which automatically compensate for changing atmospheric conditions it allows for modification of parameters that are not otherwise tunable such a throttle valve actuation and engine brakingEveryone deserves the same tuning technology that until now was reserved for factory teams and riders with their YEC race kits. With Flash-Tune you can remove the restrictions that the factory must put in place to meet strict street vehicle emissions regulations for homologation, without the need for the factory race loom and factory YEC ECU.

By using Flash-Tune to remap your ECU you are able to remap and tune your bike without interfering with critical correction factors resulting in smoother power gains than ever before possible.

Flash-Tune Remap Products are under constant development. This product is for RACE USE ONLY and may invalidate your warranty.

The included software will automatically update when connected to the internet as new features are added!

With FlashTune from FTecu there is no need for third party fueling devices like Bazzaz or PowerCommander when ECU tuning your Kawasaki ZX6 ECU flashtune
