Description
For Yamaha R6ย ย ’08 – ’15 2C0 13S
If you are looking for the LH mode switch like used on the WSBK racers, you are in the right place. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH switch group entirely.
The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons areย The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required.

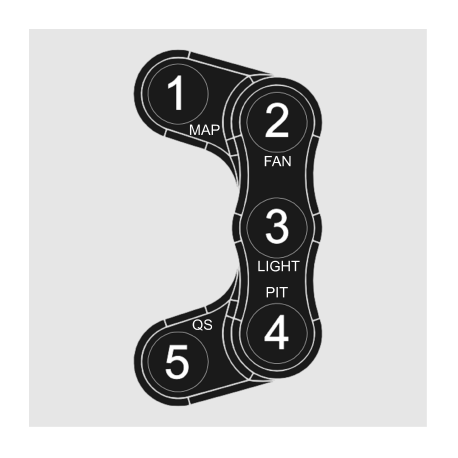

Button 1 –ย MAPย Selectorย (OEM High / low beam) (Kitย ECU or similar required)(Latching)
Button 2ย –ย FANย (Wire your own, 2 free wires provided)(Latching)
Button 3ย –ย LIGHTย (Wire your own, 2 free wires provided)(Latching)
Button 4ย –ย PITย speed limiter (OEM indicator)ย (Kitย ECU or similar required)(Latching)
Button 5ย –ย QSย Quick shifterย (OEM Horn)ย (Kitย ECU or similar required)(Momentary)
Note:ย Wiring is only rated to carry 1.4ย Amp, ย larger loads will require relays in circuit.
This is a race only part, not for street!
