Breese Racing Controls Yamaha R1 & R1M 5 Button Race Handlebar Switch Assembly i2M Dashboard control Right Hand Side, Plug and Play

£218.90 Excluding tax

Yamaha R1 & R1M
5 Button Race Handlebar Switch Assembly
For use with i2M Dashboards
Plug and Play

Description

If you are looking for the RH mode switch for use with your OEM dash just like those used on the WSBK race bikes, these are the ones. This is pure WSBK exotica.

This mode switch is for race only or for bikes with i2M Dashboards only to allow you to navigate the dash without reaching for the dashboard. Totally plug and play.

The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons are waterproof, enter and start buttons are momentary contact type and the Up/Down Selection are momentary and  On/Kill button are of latching type.

The wiring is plug and play. You can remove your street RH switchgroup and replace it with this unit. No wire cutting or splicing is required.

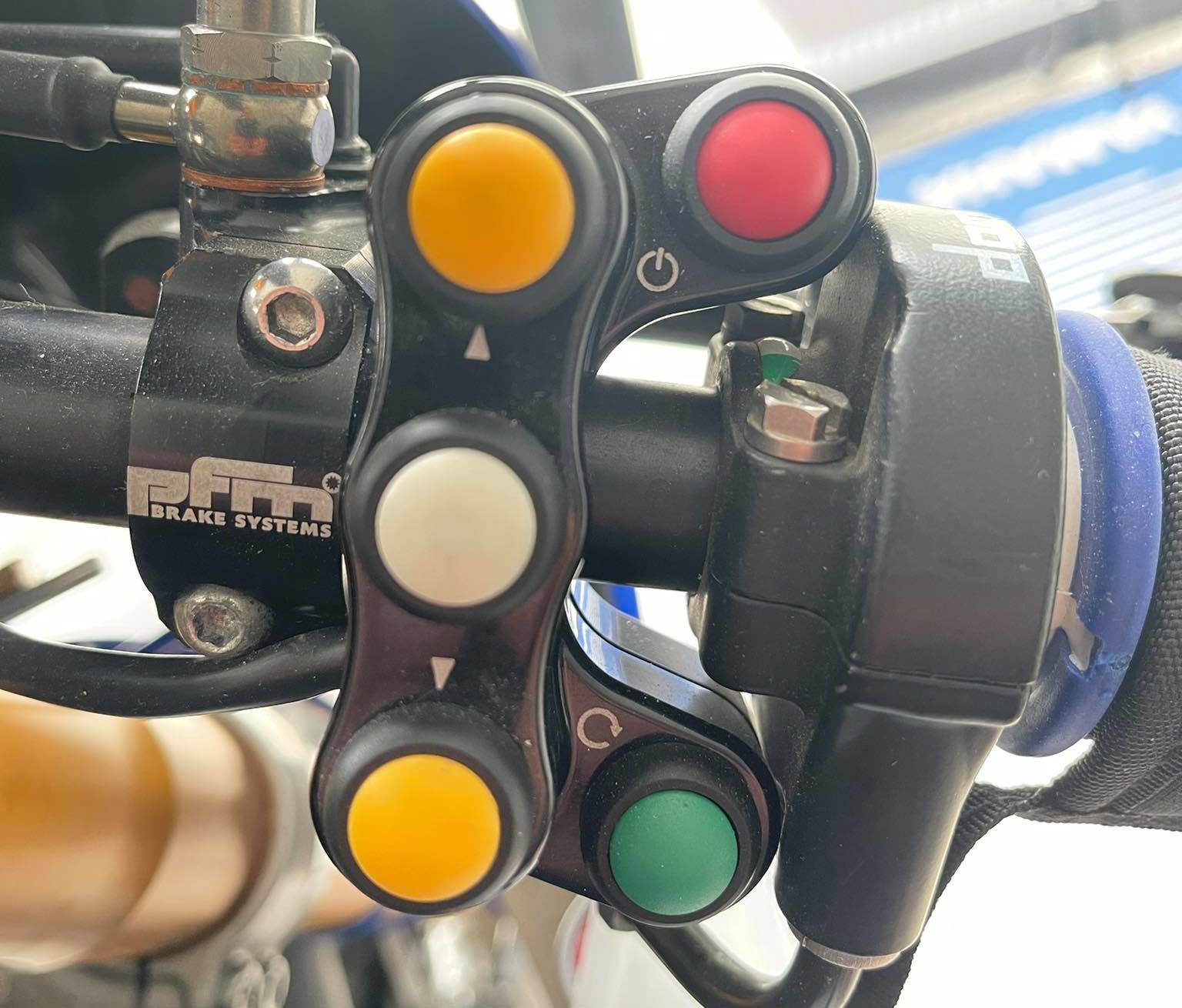

Button 1 – Red Run / kill (Latching Button)

Button 2 – Yellow Up/Down Selection  (momentary)

Button 3 –  White Bike Power On/Off (Latching)

Button 4 – Yellow SCROLL (momentary)

Button 5 – Green Start (momentary)

To scroll up button 2 (Tap button to scroll Up – Hold to Go Back)

To scroll down button 2 (Tap button to scroll Down – Hold to Enter)

Button 3 is Powering on the electronics of the bike independantly of the engine run / stop buttons

Both right and left hand side OEM controls are very prone to failure, replace yours now to avoid disappointment!
