Breese Racing Controls Kawasaki ZX10R 5 Button Race Handlebar Switch Assembly for Woolich, Plug and Play

£232.02 Excluding tax

For Kawasaki ZX10R '11 - '15 With Woolich ECU
Whatsapp us to ask a question !

Description

If you are looking for the LH mode switch like used on the WSBK racers, you are in the right place. This is pure WSBK exotica. This mode switch is for race only use and eliminates the stock LH switch group entirely.

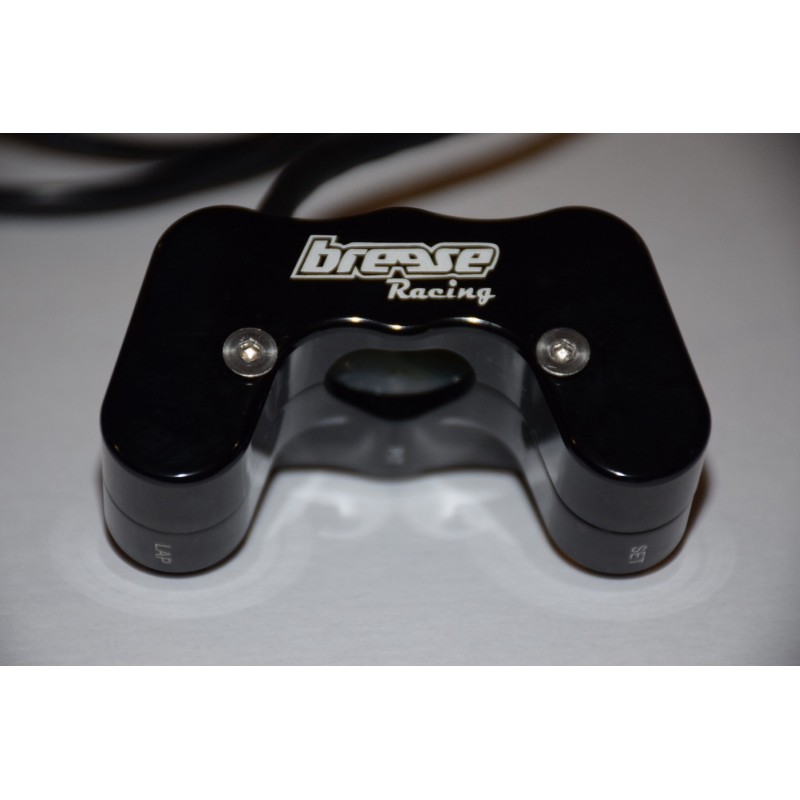

The switch body is made from 6061 Aluminium, anodised black, laser etched. Buttons are waterproof, momentary contact type and the Pit limiter is latching type. The wiring is plug and play. You can remove your street LH switchgroup and replace it with this unit. No wire cutting or splicing is required. 2 wire waterproof connector supplied to interface to Woolich supplied harness.

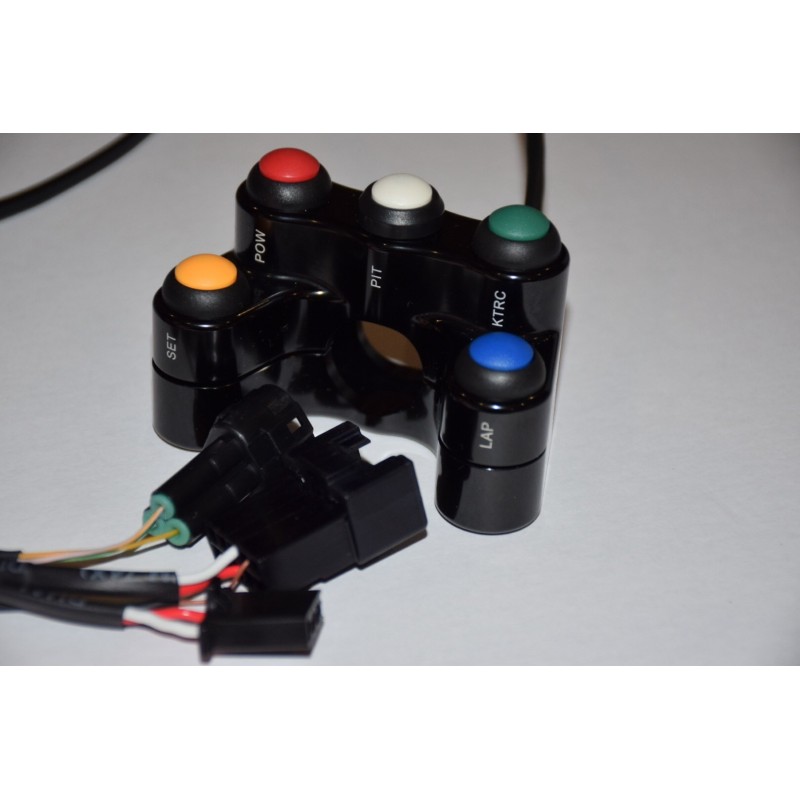

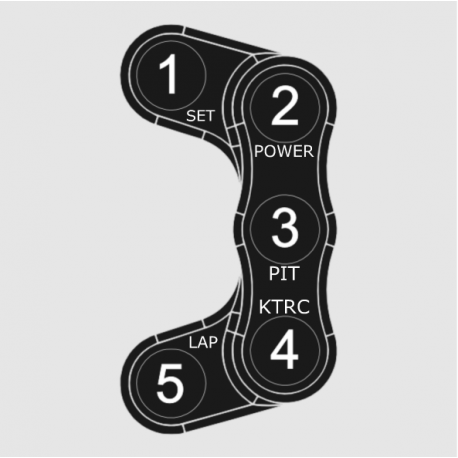

Button 1 –ย Yellowย is SET (originally on the RHS controls)

Buttonย 2 –ย Redย is Power mode

Button 3 –ย ย Whiteย is PIT speed limiter (Woolich ECU required) (Latching Button)

Buttonย 4 –Greenย is KTRC mode

Buttonย 5 –ย Blueย is LAP (originally flasher)

Package includes a clutch switch loom.

This is a race only part, not for street!
